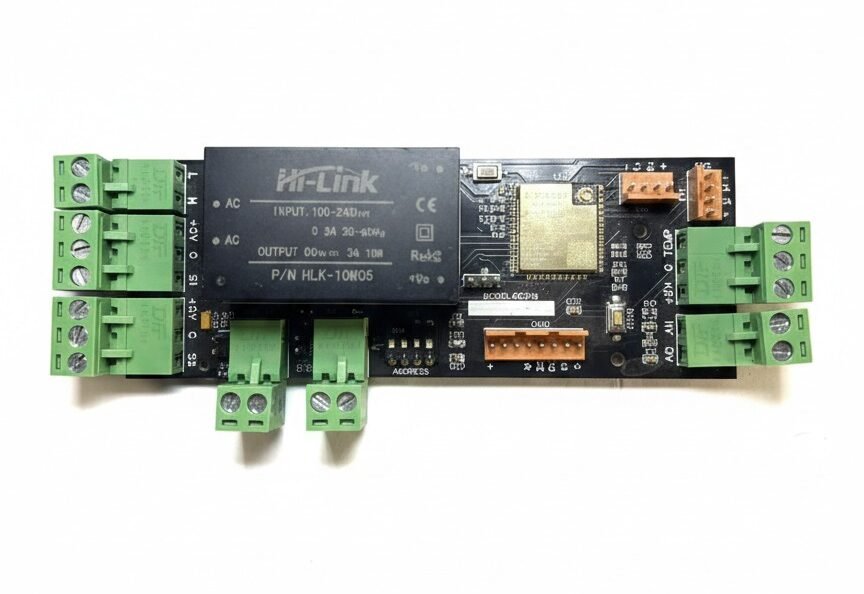

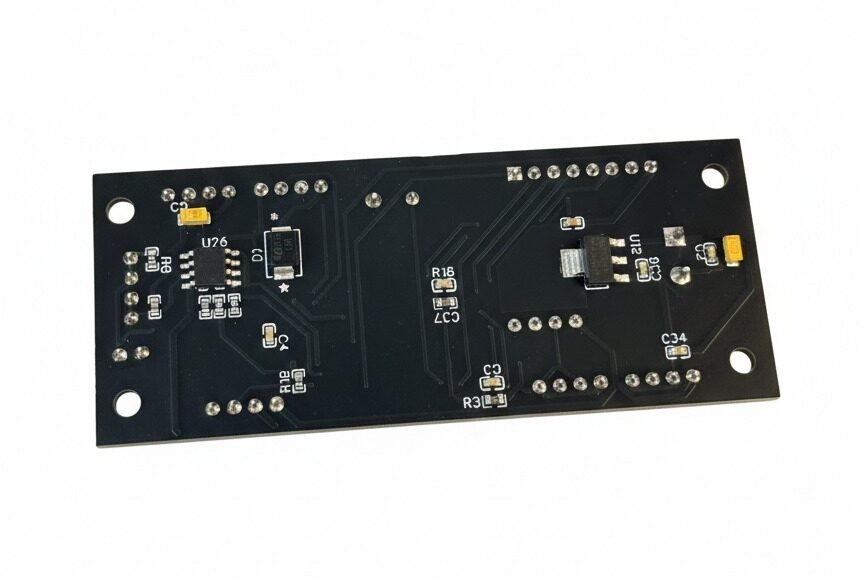

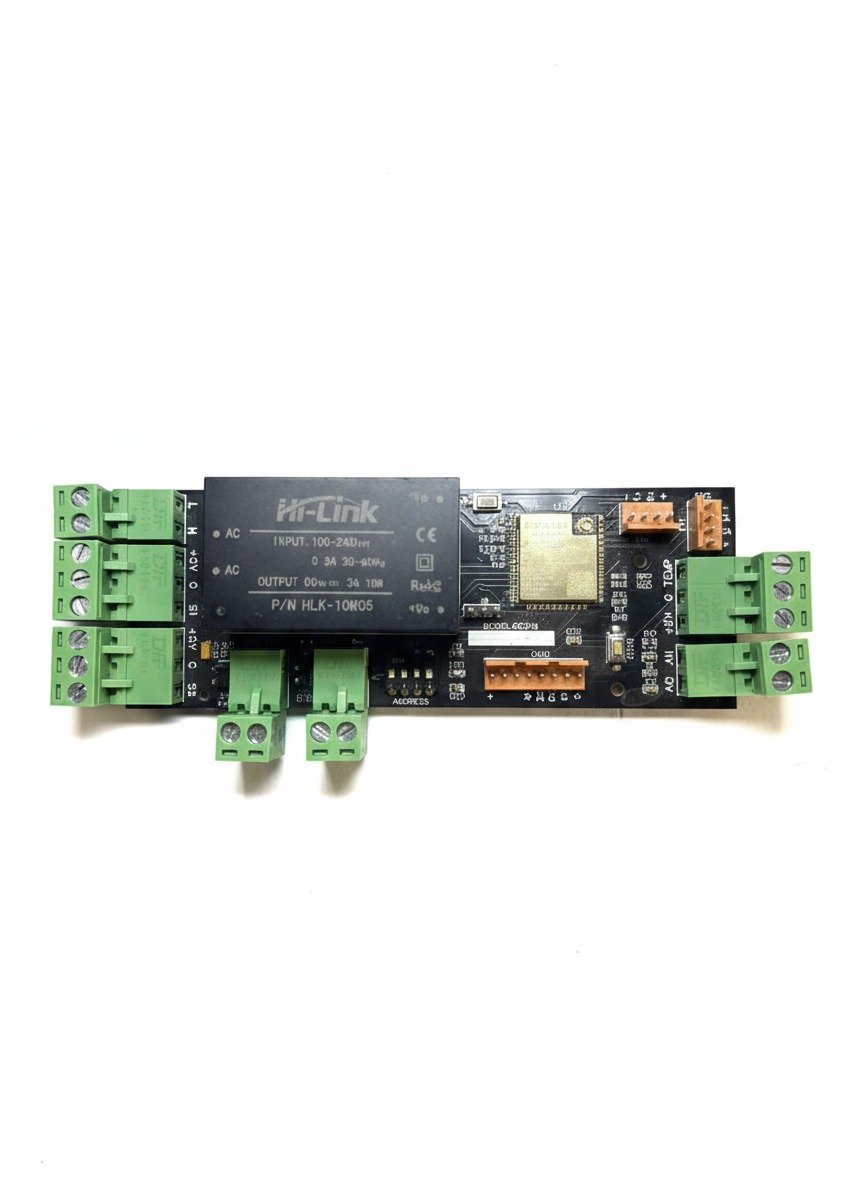

3x CAN Bus + RS485 Controller
High-performance industrial communication node designed for complex multi-network environments. Orchestrate seamless data exchange between high-speed CAN networks and long-range RS485 serial lines with enterprise-grade reliability.
Triple CAN Interface
Support for 3 independent CAN 2.0A/B channels. Perfectly suited for automotive testing, robotics, and distributed control systems (DCS) requiring parallel bus management.
Isolated RS485 Port
Equipped with professional-grade galvanic isolation to protect your logic from industrial surges. Supports Modbus RTU, Profibus, and custom serial protocols over long distances.
Real-Time Bridging
Advanced ARM-based firmware for instantaneous protocol translation. Bridge CAN-to-RS485 or CAN-to-CAN with microsecond latency and zero packet loss.
EMI Shielded Design
Engineered for high-noise factory environments. Integrated TVS diodes and signal conditioning ensure data integrity even near high-voltage motor drives and VFDs.
Versatile Power Input
Wide-range DC input (9V-36V) with reverse polarity protection. Designed to fit seamlessly into standard industrial control panels and mobile automotive rigs.
Diagnostic LED Matrix
Instant visual feedback for all active buses. Monitor TX/RX activity, bus load, and error states directly from the controller front panel for rapid troubleshooting.
The Ultimate Fieldbus Gateway
The 3x CAN Bus + RS485 Controller is the definitive solution for modernizing Factory Automation. By consolidating multiple high-speed and serial communication paths into a single ruggedized unit, it allows for sophisticated Master/Slave Synchronization, Telematics Integration, and Remote Engine Monitoring. It is built to serve as a reliable bridge between your PLC core and diverse peripheral sensors.
Project Info
- Category: Project
- Client: ECC
- Location: Pk
- Architect: ECC
- Completed Date: 2025
